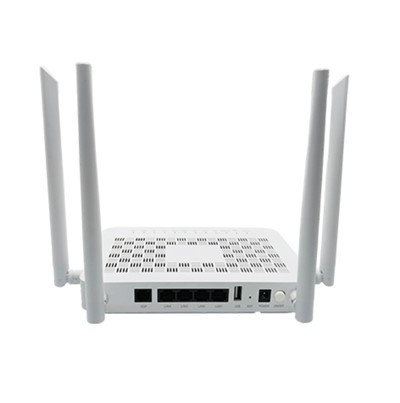

FC2104C-T XPON GPON/EPON ONU 4GE+VOIP+CATV WiFi-5 ONT
Product Overview
FC2104C-T is a XPON optical terminal access device that is highly integrated with dual-frequency Wi-Fi5. It is an optical fiber to the home terminal product of the operator. It supports ultra-bandwidth access through XPON upstream technology, and provides users with basic WIFI functions, routing, VOIP, gigabit Ethernet functions and client-side CATV interface functions. The FC2104C-T upstream network ports are XPON ports. The downstream user ports include four GE electrical ports, one USB port, one VOIP port, one CATV port, and one WiFi5 WLAN port.
Product Interface
1 * E/GPON interface: SC/UPC/APC interface, E/GPON standard
4 * Ethernet interface: 10 MBPS / 100 MBPS, 1000 MBPS, RJ-45, IEEE802.3-2005 standard
1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1*CATV, C/N ≥43dB, C/CTB ≥55dB, C/CSO ≥55dB, MER ≥32dB, BER ≤1*10E-6
1 * USB interface: standard USB 2.0 interface
Dual-band WIFI5 (2 ×2 MIMO (2.4G&5G))
Cable Connection
Product Specification
|
Hardware Specifications |
Description |
|
Port |
4GE+VOIP+CATV+1USB+WIFI5+G/EPON |
|
LED |
POWER+PON/LOS+NET+LAN + VOIP+CATV+WiFi + WPS + USB |
|
Button |
Power + Reset +WIFI+WPS |
|
Flash & Memory |
Flash: 256MB; Memory: 512MB |
|
MAC Address |
512 |
|
Power Supply |
12V/1.5A |
|
Power Consumption |
<12W |
|
Environment Standard |
Operating Temperature: -5~45℃ Storage Temperature: -20~70℃ Relative Humidity: 5%~95% (non-condensing) |
|
Environment Friendly |
RoHs,CE,CCC |
|
Weight |
0.35KG |
|
Size (W*D*H) mm |
190mm*135mm*33mm |
|
Module type |
Class B+, SC/UPC |
|
wavelength |
UP 1310nm, Down 1490nm |
|
TX Optical power |
0.5~4dbm |
|
RX Optical sensitivity |
-28dBm |
|
Transmission distance |
0~20km |
|
Transmission rate |
EPON: Upstream 1.25Gbps/Downstream 1.25Gbps GPON: Upstream 1.25Gbps/Downstream 2.5Gbps |
|
LAN Interface type |
RJ45(10/100/1000Mbps ) |
|
VOIP |
RJ11 |
|
USB |
USB2.0 |
|
CATV |
British F-head |
|
WIFI |
Dual-band WIFI5 AC1200 (2 ×2 MIMO (2.4G&5G)) |
Specification
|
Attributes |
Description |
|
|
Product Interface |
Ethernet Port |
Ethernet port-based VLAN tags and tag removal VLAN transparent and mark MAC address learning 10/100/1000Mbps Auto negotiation |
|
VoIP Port |
Call waiting; In-conditional Call Forward Call forward if busy; Call forward if no reply Three-party calls G711A/G711U/G729/G722 SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode DTMF |
|
|
CATV |
Remote Control |
ON/OFF |
|
Optical AGC |
-10~+2dBm |
|
|
Output Level |
76dBuV |
|
|
RF Bandwidth |
47-1000 MHz |
|
|
In-band Flatness |
±1.25dB |
|
|
Output Return Loss |
≥12dB |
|
|
CATV System Parameters |
C/N ≥ 43dB C/CTB ≥ 55dB C/CSO ≥ 55dB MER ≥ 32dB BER ≤ 1*10E-6 |
|
|
WiFi5 (AC1200) |
WiFi Protocol |
2.4GHz supports 802.11b/g/n 5GHz supports 802.11a/n/ac |
|
Transmit Power |
2.4G 100mW; 5G 200mW |
|
|
Antenna Gain |
5dBi |
|
|
Antenna |
Dual-antenna MIMO (2.4G&5G) |
|
|
WLAN Penetrate |
One reinforced concrete wall or two ordinary brick walls (non-reinforced concrete) |
|
|
WLAN Access Capability |
32 clients |
|
|
Channel |
2.4GHz(channel 1-13) 5GHZ(channel 36-161 ) |
|
|
WPS |
WLAN terminal devices with WPS Push Button function establish connection within 2 minutes |
|
|
WLAN Security Function |
WPA-PSK,WPA2-PSK,WPA3 WPA-PSK/WPA2-PSK AES,AES+TKIP |
|
|
Air Speed |
300 Mbps (2.4GHz); 867 Mbps (5GHz) |
|
|
Multicast |
WMM (Wi-Fi Multi Media) |
|
|
XPON Feature |
ITU-T G.984.1-4 ITU-T G.988/TR255/TR156 IEEE802.3ah 15 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN/ priority/VEIP gem mapping mode SN/LOID/SN + Password authentication Performance monitoring: eth/Gem port Dying gasp |
|
|
L2 Feature |
MAC learning (SVL)/aging Support max frame length to 1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094 VLAN transparent / translation |
|
|
L3 Feature |
PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP, DDNS IPv4/IPv6 dual stack, DS-Lite static, and default routes Multiple services on one WAN port RIPv2 with passive mode |
|
|
QoS |
Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority Service flow classification |
|
|
Multicast |
IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1/v2 |
|
|
Management |
OMCI/WEB UI/TR069 Telnet/SSH Management with CLI commands Dual-system software backup and rollback |
|
