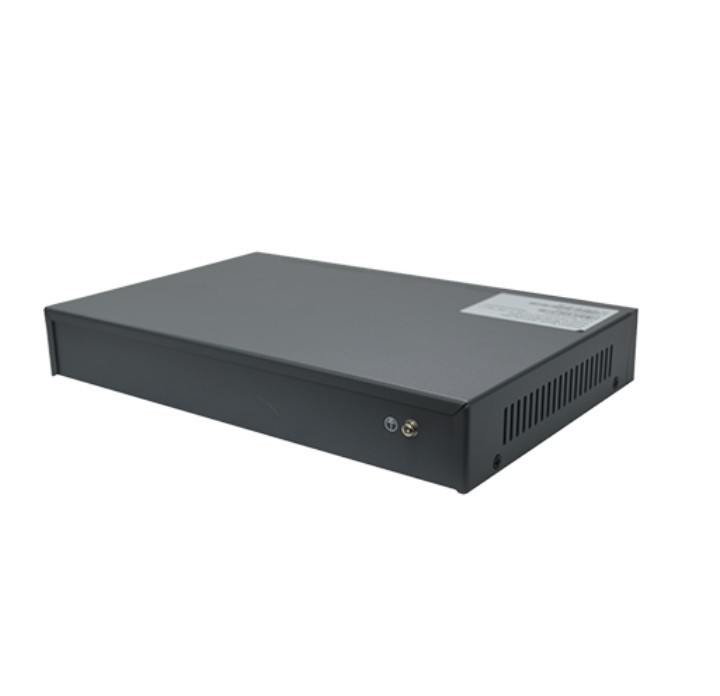

XPON MDU GPON/EPON 8 Port With POE MA2100-08T(P)
Product Overview
MA2100 Series products are Box MDU (Multi Dwelling Unit) products for FTTB/FTTO/FTTC networking scheme. The products comply with ITU-T G.984. x, IEEE802.3ah and China Telecom CTC 3.0 standards. It is carrier level operable, manageable and easy to maintain, and provide high-speed data services for customers.
The MDU type ONU includes EPON and GPON mode, designed with iron shells, which is sturdy and durable. It has a high level of security protection, wide coverage, and a variety of types that can be flexibly selected by customers according to actual needs. This device is also an all-GE interface terminal based on high-speed office, video, wireless bearer, and dedicated line access services. With small structure, large capacity, and high security, it is a star product to comprehensively expand the market.
Product Interface
General Application Solution
Key Features
Support multiple optical access methods such as EPON/GPON, unify the platform design, and make use of existing cable resources in the existing network to create a fast broadband experience
Meet the sustainable development of bandwidth and business
High integration, multiple configuration forms, external power adapter
Plug and play, simple and rapid business opening without software debugging
Easy to construct, install, operate and maintain;
Adaptability to harsh environment, wide temperature range and lightning protection capability;
The average power consumption of ports is 30% lower than the EU standard
Fan free environmental protection design, natural air cooling and heat dissipation;
Hardware Specifications
|
|
Series |
|
Upstream Port |
SC/UPC TX power: 0~+4dBm RX sensitivity: - 8~- 28dBm GPON mode: downlink 2.5Gbps/uplink 1.25Gbps EPON mode: downlink 1.25Gbps/uplink 1.25Gbps The longest distance between OLT and MDU is 20km |
|
User Port |
4 or 8 10/100/1000BASE-T Support port self-negotiation Support 802.3af/at standard POE function, with single lan maximum output of 30W,Overall output power 110W |
|
SRAM & Flash |
SRAM: Embedded SDRAM; Flash: 128MB |
|
MAC Address |
1K |
|
Idle Power Consumption (Motherboard) |
5W |
|
Full Load Power Consumption (Motherboard) |
8W |
|
Power Input |
DC 12V/1.5A, POE equipment DC 48V/2.5A |
|
Surge Protection |
User port: common mode 4kV/differential mode 1kV Power port: common mode 6kV/differential mode 2kV |
|
Electrostatic Protection |
Air 15kV/contact 8KV |
|
Working Temperature |
-20℃～85℃ |
|
Storage Temperature |
-40℃～125℃ |
|
Relative Humidity |
5%~95% non-condensing |
|
Weight Of Iron Shell |
About 0.8kg |
|
Size |
235×153mm×35mm(L*W*H) |
Software Specifications
Indicator Description
|
Lamp |
Screen Identification |
|
|
|
Power |
POWER |
On |
The equipment has been powered on |
|
Off |
The equipment has been powered off or powered off |
||
|
ONU Registration |
PON |
On |
Device registered to OLT |
|
Off |
The device is not registered to OLT |
||
|
Flashing |
The device is in the process of being registered |
||
|
LOS |
LOS |
Flashing |
The device does not receive an optical signal |
|
Off |
No optical signal is received by the device |
||
|
User Port |
LAN(Green) |
Flashing |
The user port is transmitting data |
|
On |
The user port is connected |
||
|
Off |
The user port is not connected |
||
|
LAN (Yellow) |
On |
The POE power supply is connected |
|
|
Off |
The POE power supply is not connected |
Purchase Info
|
Product name |
Product Description |
|
MA2100-08T |
XPON ONU, 8GE(RJ45), DC12V/1.5A |
|
MA2100-08TP |
XPON ONU, 8GE(RJ45), Support 8-way POE/POE+, DC48V/2.5A |
|
|
Series |
|
ONU |
EPON/GPON adaption Two ways FEC (Forward Error Correction) Support DBA's dynamic bandwidth allocation Support the dispatching alarm dyng gasp function Meet interworking with mainstream OLT manufacturers |
|
L2 |
1K MAC address capacity MAC address learning number configuration VLAN passthrough and VLAN filtering based on Ethernet port 802.1D,802.1ad,802.1p CoS |
|
QOS |
Ethernet port speed limit Network storm suppression |
|
Multicast |
IGMPv2/v3 IGMP snooping |
|
Maintain |
Automatic authorization CLI / OMCI / OAM / WEB |
|
Security |
MAC address filtering/IP address filtering/URL filtering port loop detection |
