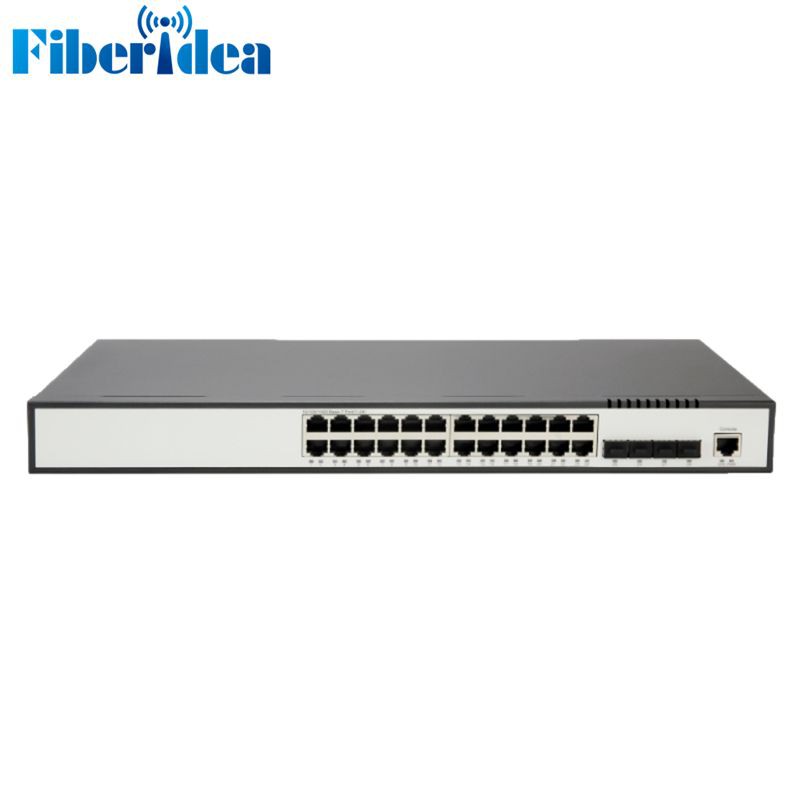

2.5G Access 10G Uplink Layer 3 Switch

Model

H-S5750-30TX

product configuration

24*2.5G Electrical Ports，6*1000M SFP/10GE SFP+，
Single AC power supply

Physical Interface

10 Gigabit Optical Ports: 6 *10Gigabit optical ports, 10 Gigabit optical ports can be adaptively connected to Gigabit optical ports, type SFP/SFP+/LC;

2.5G Electrical Ports: 24* 2.5G electrical ports, the electrical ports can be adapted to 10/100/1000M, type RJ45;

Console Port: management serial port, used for command line management, type RS232;

Mechanical structure

Chassis shell: metal shell, air-cooled heat dissipation;

Chassis size: Dimensions (length*width*height) (mm) 440*210*44;

Installation method: standard 19-inch 1U rack-mounted installation;

Features

Support 5 port 10Base-T/100Base-TX/1000Base-TX Ethernet

-40~+75℃ working temperature

Support ACL security filtering mechanism, provide security control functions based on MAC, IP, L4 port and port level;

12~48VDC wide voltage power supply input

Support remote user authentication based on Tacacs+/Radius, support Local local user authentication;

Support SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority service flows on demand;

No fan, low power consumption design

Support multi-port mirroring analysis function, support mirroring analysis based on service flow;

Support MAC address self-learning

Support policy-based IPv4/6 unicast routing, and support flexible forwarding policies;

Support CLI command line management based on serial port, Telnet, SSHv2;

Support RFC1213 SNMP network management;

Support configuration management based on WEB page;

Working environment

Operating Temperature : -15°C～55°C;

Storage temperature: -40°C～70°C;

Relative humidity: 10%～90%,no condensation problems;

Power consumption

Power supply specifications: Single AC power supply;

Input power: AC: input 90～264V, 47～67Hz;

Power consumption of the whole machine: full load power consumption ≤ 22W, idle power consumption ≤ 13W;
