Product Introduction
|
Product Model |

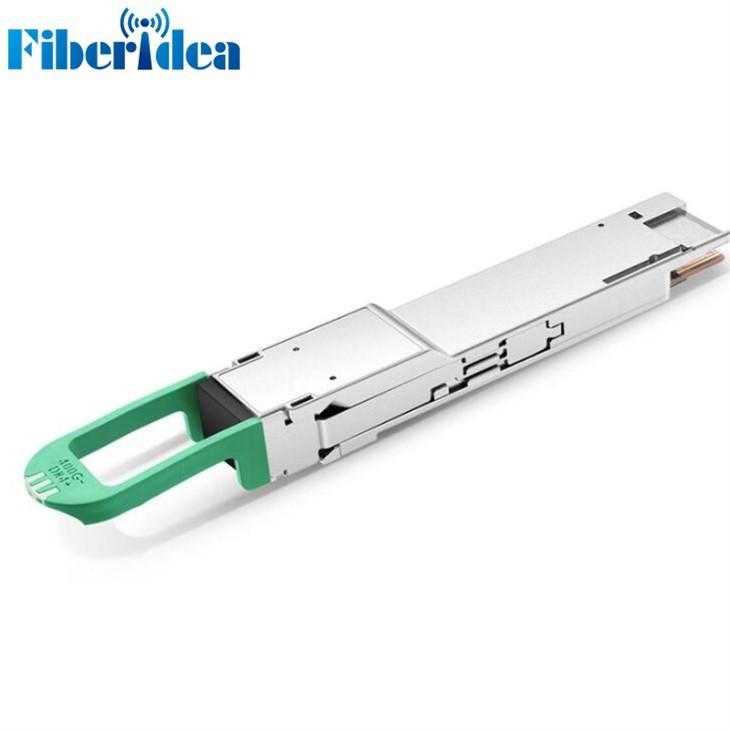

400G QSFP-DD FR4 |
|
Form Factor |
QSFP-DD |
|
Max Data Rate: |
425Gbps (4×106.25Gb/s) |
|
Cable Type |
SMF |
|
Wavelength |
1310nm |
|
Transmitter Type |
CWDM EML |
|
Max Cable Distance |
2km |
|
Connector |
LC |
|
TX Power |
-3.2~4.4dBm |
|
RX Sensitivity |
-4.6dBm |
|
Warranty |
2 Years |
|
Temperature Range |
0 to 70°C |
|
Power Consumption |
≤12W |
Features
- Supports 425Gb/s aggregate bit rate
- Digital Diagnostics Monitoring Interface
- Built-in 400G PAM4 DSP
- Maximum link length of 2km SMF with KP-FEC
- Uncooled 4 channels 1310nm EML
- 4 channels PIN photo detector array
- TDECQ<3.4dB
- Single MPO12 receptacle
- QSFP-DD MSA compliant
- Compliant to 100G Lambda MSA
- 4 CWDM lanes MUX/DEMUX design
- 8x53.125Gb/s PAM4 electrical inter- face (400GAUI-8)
- Maximum power consumption 12W
- LC duplex connector
- Up to 2km transmission on single mode fiber with FEC
- Single 3.3V power supply
- Hot Pluggable QSFP-DD form factor
- Commercial operating case temperature range: 0~70℃
- RoHS compliant
Application
Applied in 400G Ethernet, Infiniband interconnects, DCI, etc.
