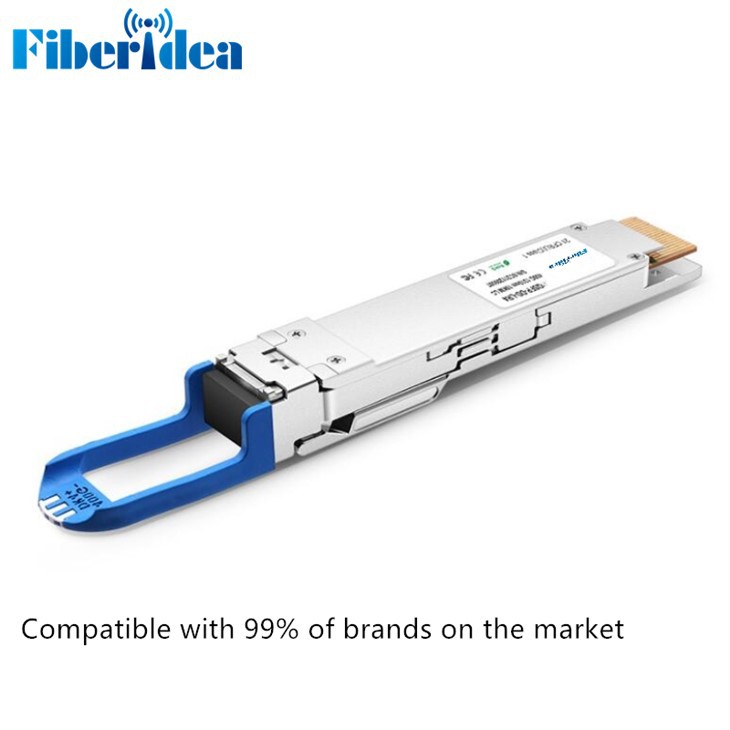

Product Introduction
|
Part Number |
400G QSFP-DD LR4 |
|
Form Factor |
QSFP-DD |
|
Max Data Rate: |
400G |
|
Wavelength |
LWDM4 |
|
Max Cable Distance |
10KM |
|
Connector |
Duplex LC |
|
Transmitter Type |
CWDM EML |
|
Receiver Type |
PIN |
|
TX Power |
-2.8dBm ~5.3dBm |
|
RX Sensitivity |
-7.1dBm |
|
DDM/DOM |
Yes |
|
Warranty |
2 Years |
|
Commercial Temperature Range |
0°C~70°C |
|
Forward Error Correction (FEC) |
Host FEC Supported |
|
Protocols |
IEEE 802.3bs, QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and 100G Lambda MSA |
Features:
- Built-in 400G PAM4 DSP
- CWDM EML + PIN, Duplex LC connector.
- Maximum link length of 10KM SMF with KP-FEC
- Digital Diagnostics Monitoring Interface
- Hot Pluggable QSFP-DD form factor
- Cooled 4 channels EML TOSA
- Low power consumption ≤12W.
- 400GAUI-8/CEI-56G- VSR- PAM4, four CWDM optical lanes
- Applied in 400G Ethernet, Infiniband interconnects, DCI, etc.
- Commercial operating case temperature range: 0~70℃
- RoHS Compliant
- TDECQ<3.9dB
