Uses 1291nmTx/1311nmRx wavelengths via LC connector. This bidirectional unit must be used with another transceiver or network device with a complementary wavelength. As specified by the QSFP28 MSA, digital diagnostics are also provided via the I2C interface to allow access to real-time operating parameters. These features make this easy-to-install, hot-swappable transceiver suitable for a variety of applications such as 100G Ethernet, data center and storage area network applications.
|
SPE |

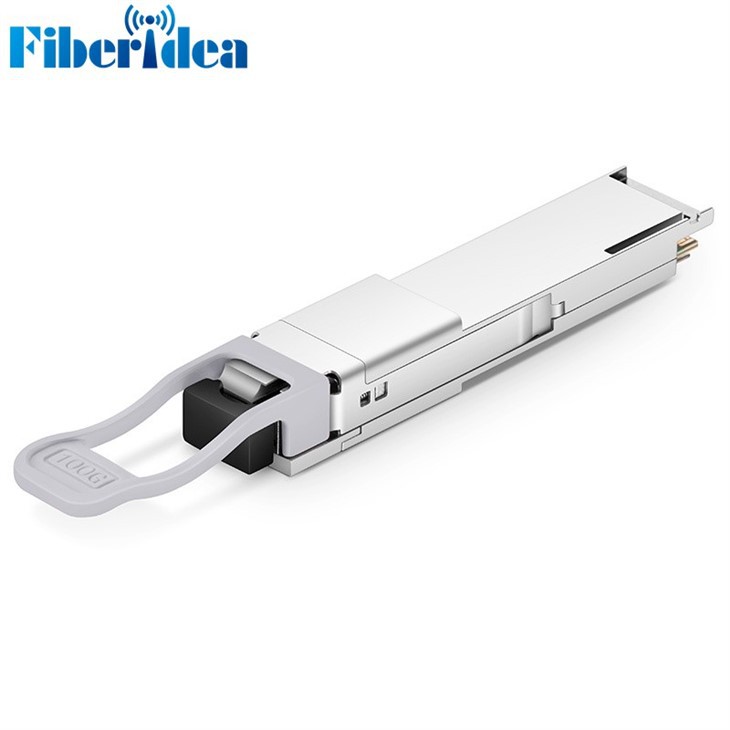

QSFP28 100G BIDI 1291-1311 20km |
|
PN |
QSFP28-100G-BX20-U |
|
Form Factor |
QSFP28 |
|
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
|
Wavelength |
1291-1311nm |
|
Max Cable Distance |
20km |
|
Connector |
Simplex LC |
|
Media |
SMF |
|
Transmitter Type |
DFB |
|
Receiver Type |
PIN |
|
TX Power |
-4.3~4.5dBm |
|
Receiver Reflectance |
-14.5dBm |
|
Power Consumption |
≤5W |
|
Temperature |
-20 to 85°C |
|
DDM/DOM |
Supported |
|
Protocols |
QSFP28 MSA |
|
Warranty |
3 Years |
|
Applications |
100GBASE Ethernet, Data Center |
|
Package Type |
neutral packing, retail packing, plastic packing,carton box, etc |
|
Services |
OEM/ODM |
|
Sample |
Available |
|
Supply |
In stock |
