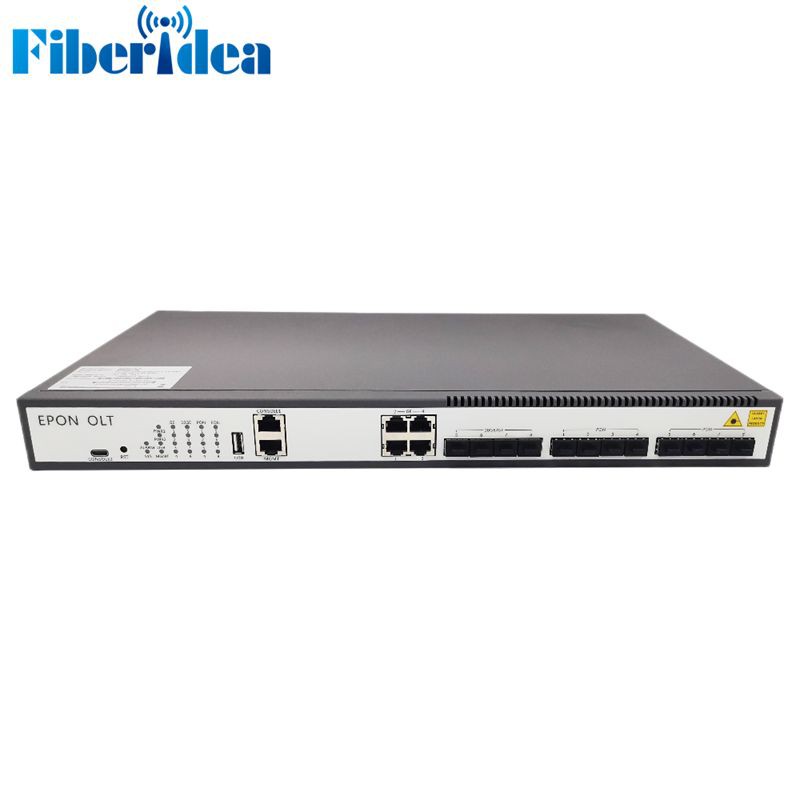

8 Ports EPON OLT Optical Line Terminal

Model

HEP5800-08P

Hardware

8*GEPON SFP，4*10GE/GE SFP，4*10/100/100 BaseT，AC/DC dual power supply optional

AC power module

NPAC220-50W-1

DC power module

NPDC48-48W-1

Physical Interface

1RU19 inch Cassette;

1+1 Power redundancy；

EPON Port: 8 EPON ports, type GEPON SFP;

Upstream Electrical Ports: 4 gigabit electrical ports, the gigabit electrical ports can be adapted to 10/100/1000M, type RJ45;

Uplink Optical Ports: 4 10Gigabit optical ports, 10 Gigabit optical ports support Gigabit optical, type SFP/SFP+/LC;

Console Port: management serial port, used for device command line management, type RS232;

MGMT Port: out-of-band management port, used for device Telnet/SSH/WEB login control, type RJ45;

USB Port: USB port, used for device software upgrade, configuration upload and download, authorization ukey, type USB2.0;

Type C Interface: Type-C management interface, used for device command line configuration management, type Type C;

RST Port: reset port, used for manual reset and restart of the device;

Mechanical structure

Chassis shell: metal shell, air cooling;

Power fan: Modular design of power supply, support hot swap. two fixed fans;

Chassis size: Dimensions (length*width*height) (mm) 440*260*44;

Installation method: standard 19-inch 1U rack-mounted installation;

working environment

Operating temperature: -15°C～55°C;

Storage temperature: -40°C～70°C;

Relative humidity: 10%～90%, no condensation;

Power consumption

Power supply specifications: 1+1 redundant power supply, AC/DC optional;

Input power: AC: input 100～240V, 47～63Hz; DC: 36V～75V;

Power consumption of the whole machine: full load power consumption ≤ 49W, idle power consumption ≤ 25W;
