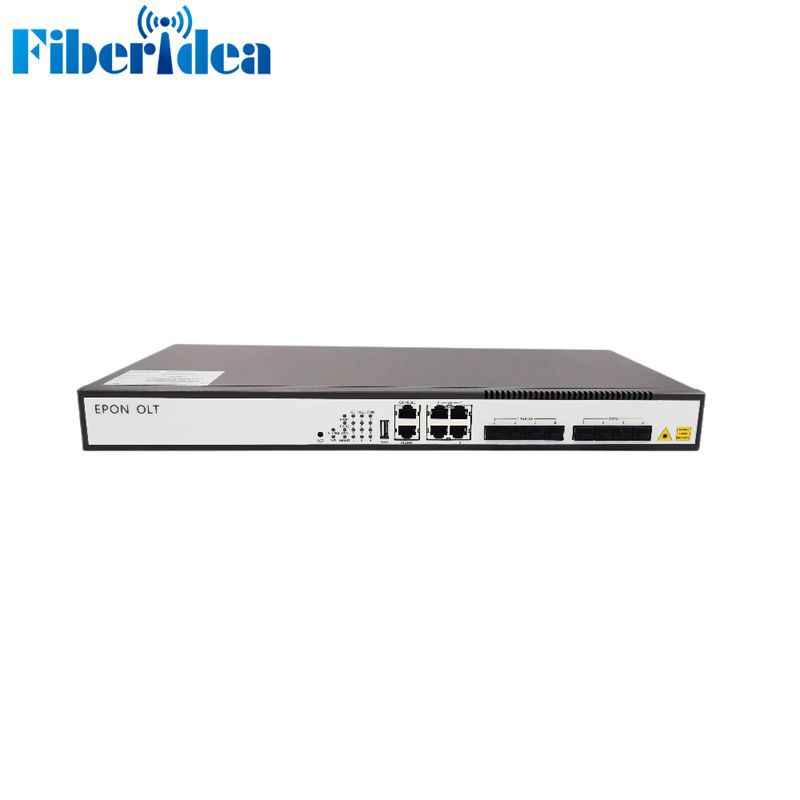

4 Ports EPON OLT
2
3
4

4 Ports EPON OLT

Connect with the front-end (aggregation layer) switch with a network cable, convert it into an optical signal, and interconnect with the optical splitter at the user end with a single optical fiber.

Send Inquiry

Product Introduction

■In the application of PON (Passive Optical Network: Passive Optical Network) technology, OLT equipment is an important central office equipment.
■Connect with the front-end (aggregation layer) switch with a network cable, convert it into an optical signal, and interconnect with the optical splitter at the user end with a single optical fiber.
■Realize functions such as control, management, and distance measurement of the ONU at the user end.
■OLT equipment, like ONU equipment, is also an optoelectronic integrated equipment.

Model	HEP5800-04P
Product configuration	4GEPON SFP，410GE/GE SFP，4*10/100/100 BaseT，AC/DC dual power supply optional
Physical Interface	1RU19 inch Cassette;
	1+1 Power redundancy；
	EPON Port: 4 EPON ports, type GEPON SFP;
	Upstream Electrical Ports: 4 gigabit electrical ports, the gigabit electrical ports can be adapted to 10/100/1000M, type RJ45;
	Uplink Optical Ports: 4 10Gigabit optical ports, 10 Gigabit optical ports support Gigabit optical, type SFP/SFP+/LC;
	Console Port: management serial port, used for device command line management, type RS232;
	Type C Interface: Type-C management interface, used for device command line configuration management, type Type C;
	RST Port: reset port, used for manual reset and restart of the device
Mechanical structure	Chassis shell: metal shell, air cooling;
	Power fan: Modular design of power supply, support hot swap. two fixed fans;
	Chassis size: Dimensions (lengthwidthheight) (mm) 44026044;
	Installation method: standard 19-inch 1U rack-mounted installation;
Features	Support 1:64 split ratio, the whole machine supports 256 ONU access;
	Support SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority service flows on demand;
	Support multi-port mirroring analysis function, support mirroring analysis based on business flow;
	Support static and flexible QinQ functions;
	Support IPv4/IPv6 dual protocol stack platform, support IPv4/IPv6 static routing;
	Support IPv4/IPv6 dual protocol stack platform, support RIP/OSPF and other routing protocols;
	Support configuration management based on WEB page;
	Support Type-C interface management;
	Support the power failure alarm function of the whole machine;
working environment	Operating temperature: -15°C～55°C;
	Storage temperature: -40°C～70°C;
	Relative humidity: 10%～90%, no condensation;
Power consumption	Power supply specifications: 1+1 redundant power supply, AC/DC optional;
	Input power: AC: input 100～240V, 47～63Hz; DC: 36V～75V;
	Power consumption of the whole machine: full load power consumption ≤ 49W, idle power consumption ≤ 25W;
