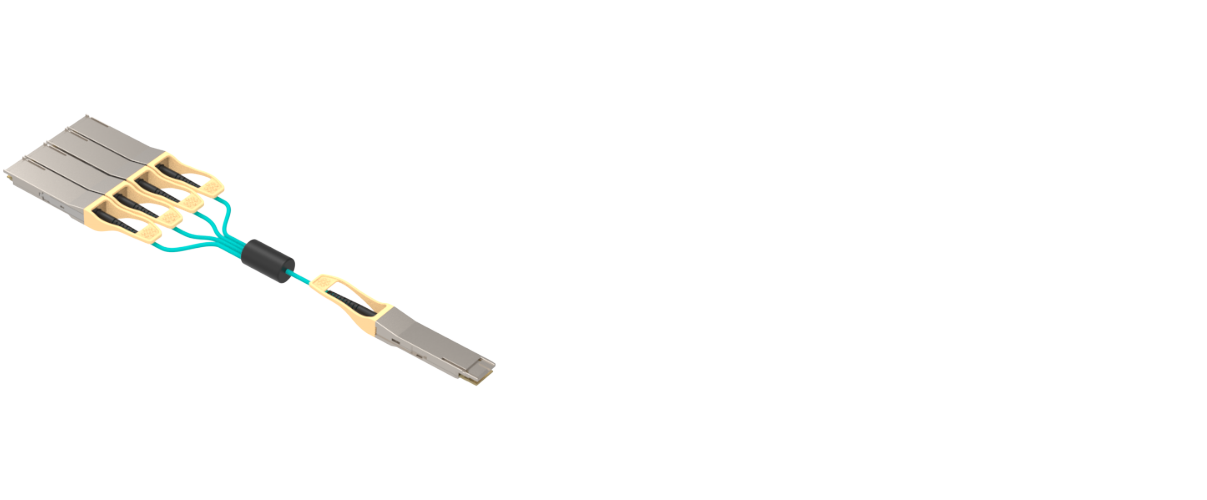

400G QSFP-DD To 4 × 100G QSFP56 Active Optical Cable (AOC), 1-20M
400G QSFP-DD To 4 × 100G QSFP56 Active Optical Cable (AOC), 1-20M
400G QSFP-DD To 4 × 100G QSFP56 Active Optical Cable (AOC), 1-20M
400G QSFP-DD To 4 × 100G QSFP56 Active Optical Cable (AOC), 1-20M
400G QSFP-DD To 4 × 100G QSFP56 Active Optical Cable (AOC), 1-20M
| Part Number | QDD-4Q56-AOC-xM | Vendor Name | Fiberidea |
| Form Factor | QSFP-DD to QSFP56 | Max Data Rate | 400Gbps |
| Cable Length | 1-20M | Cable Type | OM3 |
| Wavelength | 850nm | Minimum Bend Radius | 30mm |
| Transmitter Type | VSCEL | Receiver Type | PIN |
| Power Consumption | 400G <10W 100G<3W | Jacket Material | LSZH |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | 4x 100G-PAM4 |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA, QSFP-DD-CMIS-Rev4.0, SFF-8024, IEEE 802.3bs Annex120E | Host FEC | Pre-FEC BER 2.4E-4 |
| Application | 400G Ethernet | Warranty | 5 Years |
Features
•High-density QSFP-DD and 4x QSFP56 MSA-compliant connectors
•8 channels full-duplex active optical cables
•8x 850nm VCSEL array and PIN photo-detector array
•Compliant with IEEE 802.3cd 200GBASE-SR4 and 100GBASE-SR2
•Data rate up to 425Gbps
•Length up to 70m (OM3) or 100m (OM4) over MMF
•Power consumption < 9W (400G QSFP56-DD), < 4.5W (100G QSFP56)
•Operating case temperature range from 0°C to 70°C
•3.3V power supply voltage
•RoHS compliant (lead free)
Applications:
•Ethernet 40G, 100G, 200G, 400G
•InfiniBand NDR, HDR, EDR, QDR
•Rack-to-Rack, Shelf-to-Shelf Interconnect
•TOR (Top of Rack)
Compliant:
•Compliant to IEEE 802.3cd and IEEE 802.3bs(Cisco.com)
•InfiniBand NDR, HDR, EDR, QDR
•RoHS compliant
