400G QSFP-DD To 8x 50G SFP56 Passive Direct Attach Copper Cable (DAC), 0.5M-3M
400G QSFP-DD To 8x 50G SFP56 Passive Direct Attach Copper Cable (DAC), 0.5M-3M
400G QSFP-DD To 8x 50G SFP56 Passive Direct Attach Copper Cable (DAC), 0.5M-3M
400G QSFP-DD To 8x 50G SFP56 Passive Direct Attach Copper Cable (DAC), 0.5M-3M
400G QSFP-DD To 8x 50G SFP56 Passive Direct Attach Copper Cable (DAC), 0.5M-3M
| Part Number | 400G-DAC-xM | Vendor Name | Fiberidea |
| Connector Type | QSFP-DD to 8 SFP56 | Data Rate | 400Gbps |
| Minimum Bend Radius | 39.5mm | Wire AWG | 28AWG |
| Cable Length | 0.5-3m | Jacket Material | PVC (OFNR) |
| Transmitter Type | DFB | Receiver Type | PIN |
| Cable Type | Twinax Cable | MTBF | 500 000 Hours |
| Power Consumption | <0.1W | Power Supply | 3.3V |
| Temperature | 0 to 70°C (32 to 158°F) | Protocols | 400G Ethernet |
Features
1. 400G QSFP56 to 8*50G QSFP56 Connetor
2. PVC (OFNR) Jacket
3. Low Power Consumption
4. High performance in 400G Ethernet Network Solution
5. Minimum Bend Radius 39.5mm
Applications:
Ethernet 40G, 100G, 200G, 400G
InfiniBand NDR, HDR, EDR, QDR
Rack-to-Rack, Shelf-to-Shelf Interconnect
TOR (Top of Rack)
Compliant:
Compliant to IEEE 802.3cd and IEEE 802.3bs(Cisco.com)
InfiniBand NDR, HDR, EDR, QDR
RoHS compliant

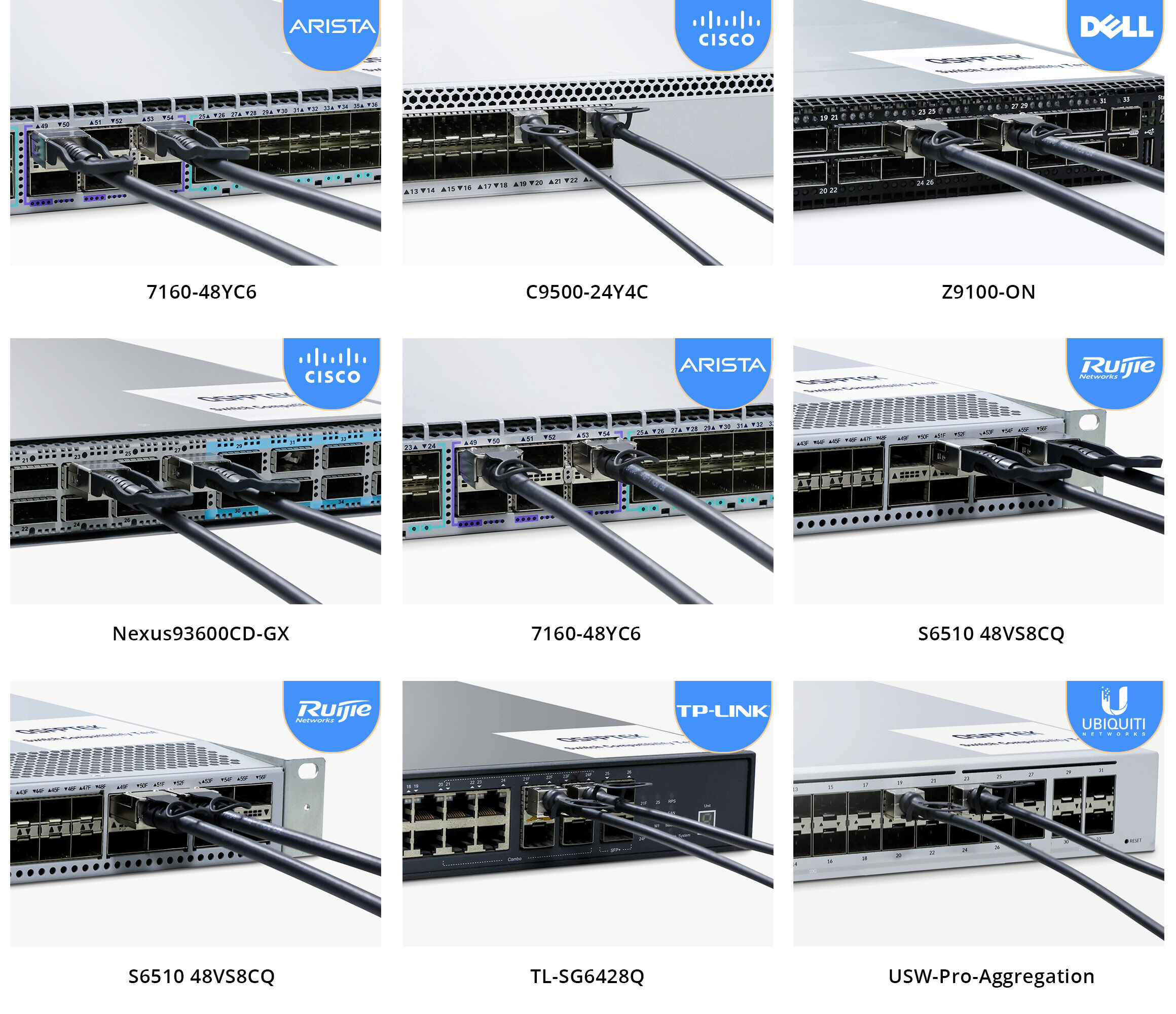

Various Switch Tests
Every cable is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

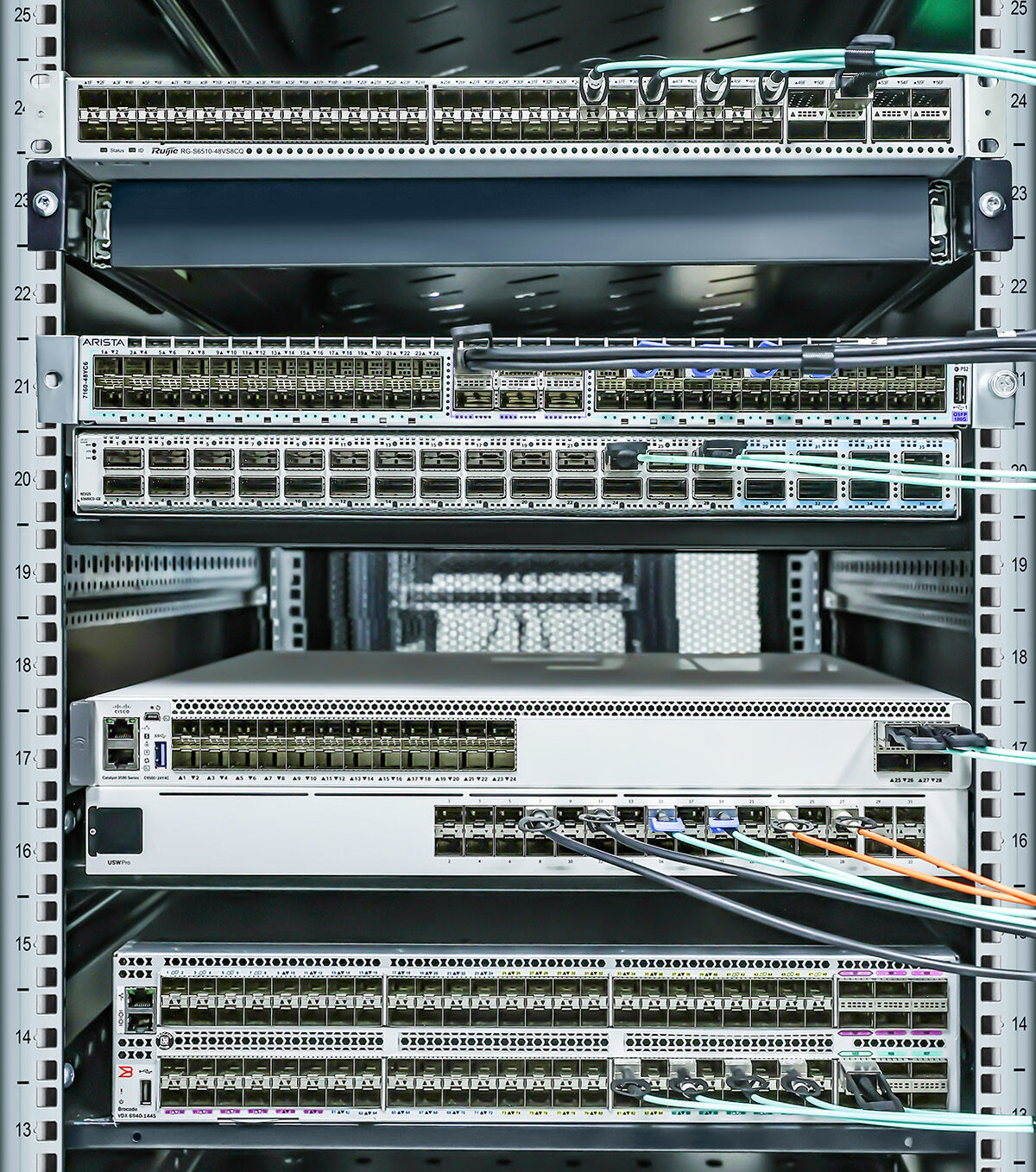

Tested in The Host Device to Prove Interoperability
Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

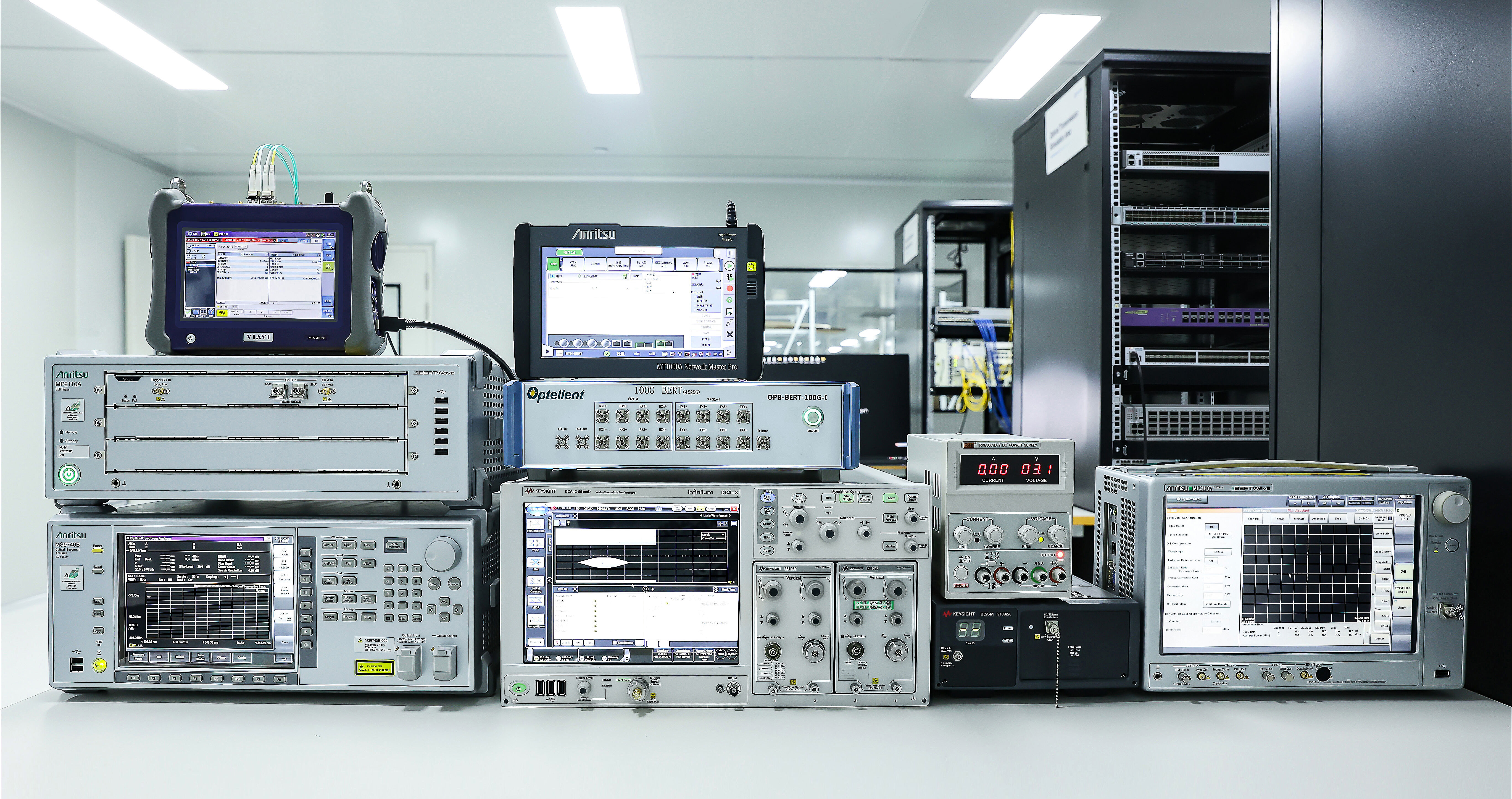

Comprehensive Testing
Every cable is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
