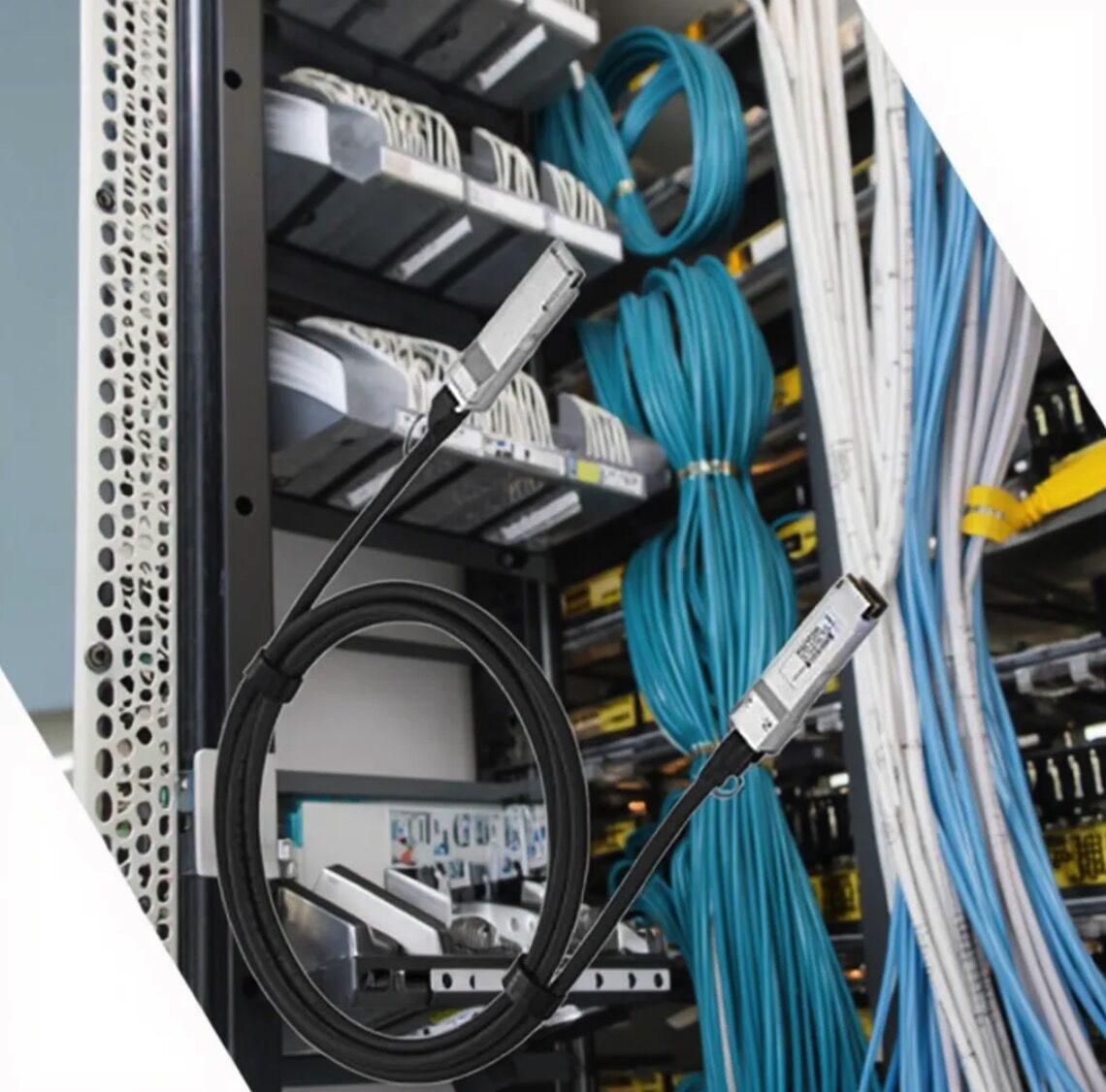

10g SFP To 10g SFP + DAC (Direct Attach Copper Cable) 2M-10M

Key Specifications/ Special Features:

Cisco Juniper Arista HW H3C HPE Brocade Compatible DAC 40G QSFP+ to 4x 10G SFP+ Passive Direct Attach Copper Breakout Cable

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption,short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s ,providing an aggregated rate of 40Gb/s.

Applications

10G/40Gigabit Ethernet

InfiniBand SDR, DDR, QDR

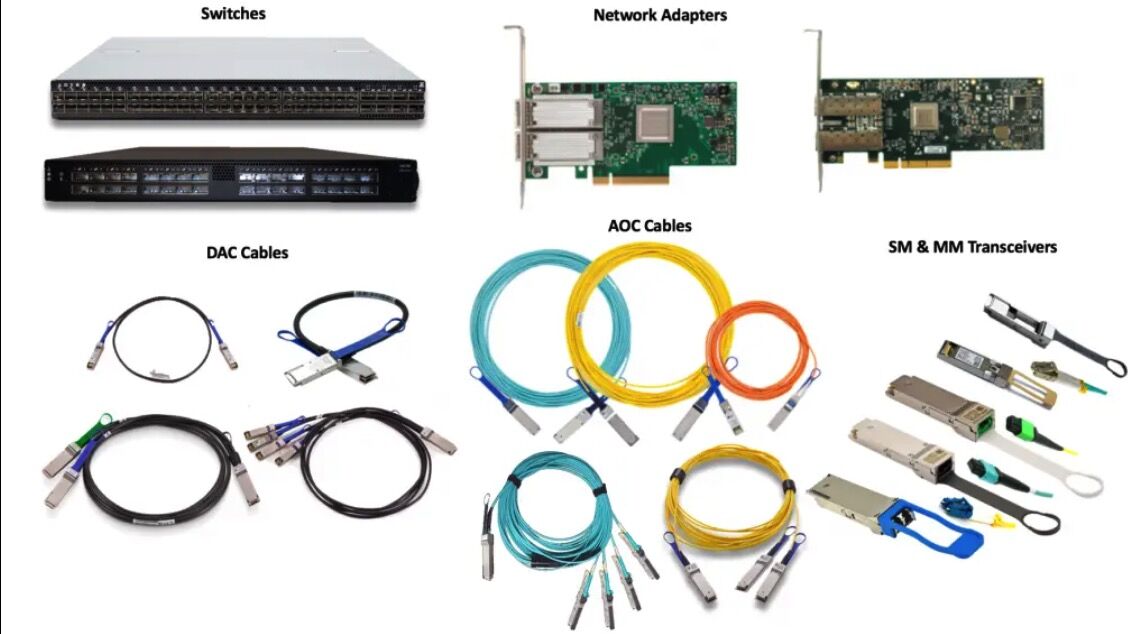

Switches, Routers, and HBAs

Data Centers

Fibre Channel

Features

Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

Support for multi-gigabit data rates :1.0 Gbps - 10.3125Gbps (per channel)

Maximum aggregate data rate: 41.25 Gbps (4x10.3125Gbit/s)

Hybrid cable link length up to 5m(passive limiting)

High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

Power Supply :+3.3V

Low power consumption: 0.02 W (typ.)

Temperature Range: 0~ 70 °C

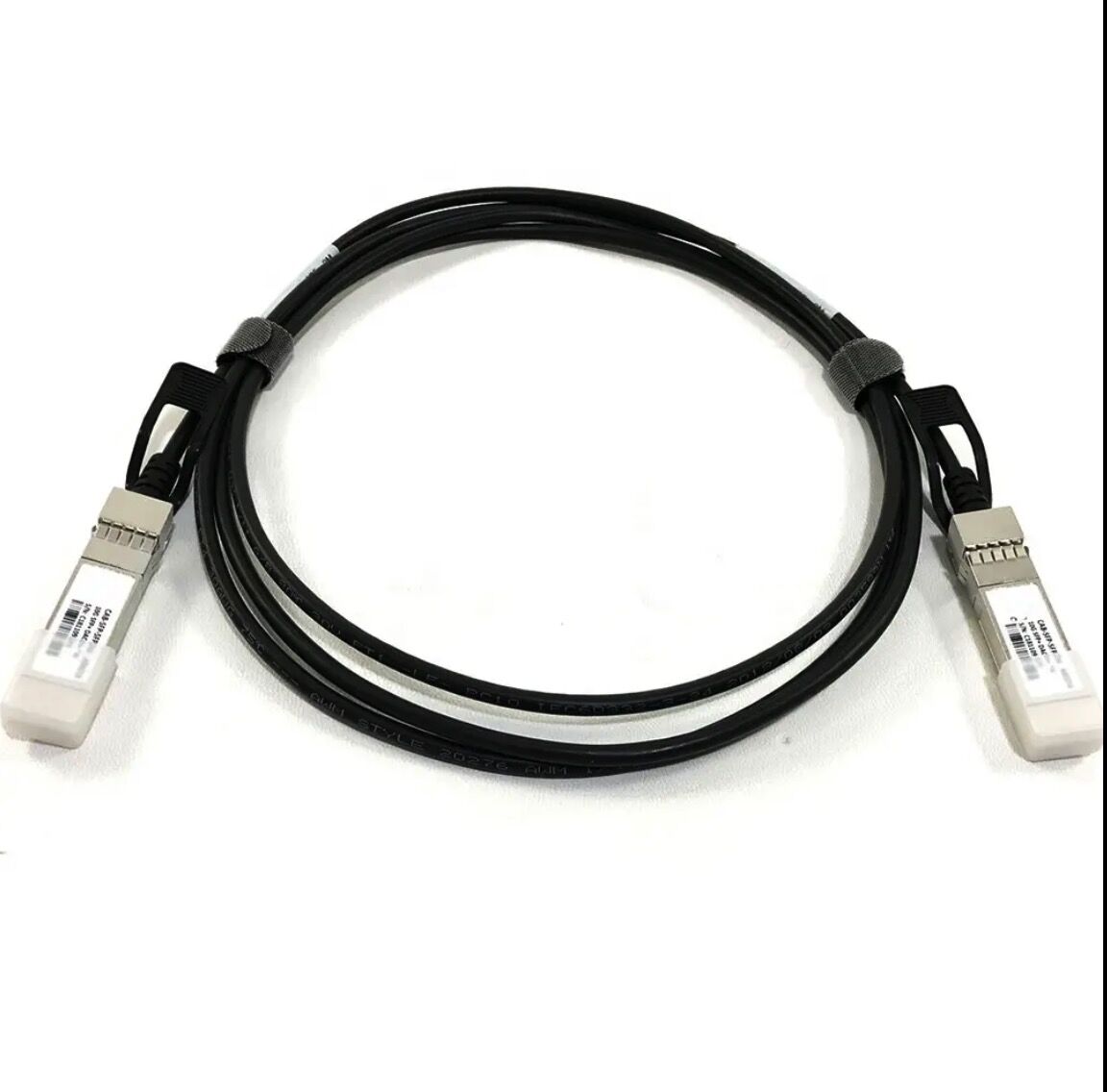

sfp to sfp 10g Dac Direct Attach Copper Cable Optical Fiber Cable Assembly

Introduction:
DAC is direct attach copper cable assemblies with hot swappable transceiver modules like as SFP+, QSFP, QSFP28. It provides a lower cost, high density interconnects solution alternative for high speed interconnects from 10G to 100G to fiber optics transceivers. Compared with optics transceiver, the direct attach cables providing a cost effective solution that support multiple protocols including 40GbE,100GbE, Gigabit & 10G Ethernet, 8G FC, FCoE, and InfiniBand.

Product Details:
1. Wire AWG: 30AWG
2. Cable Length:2M-10M

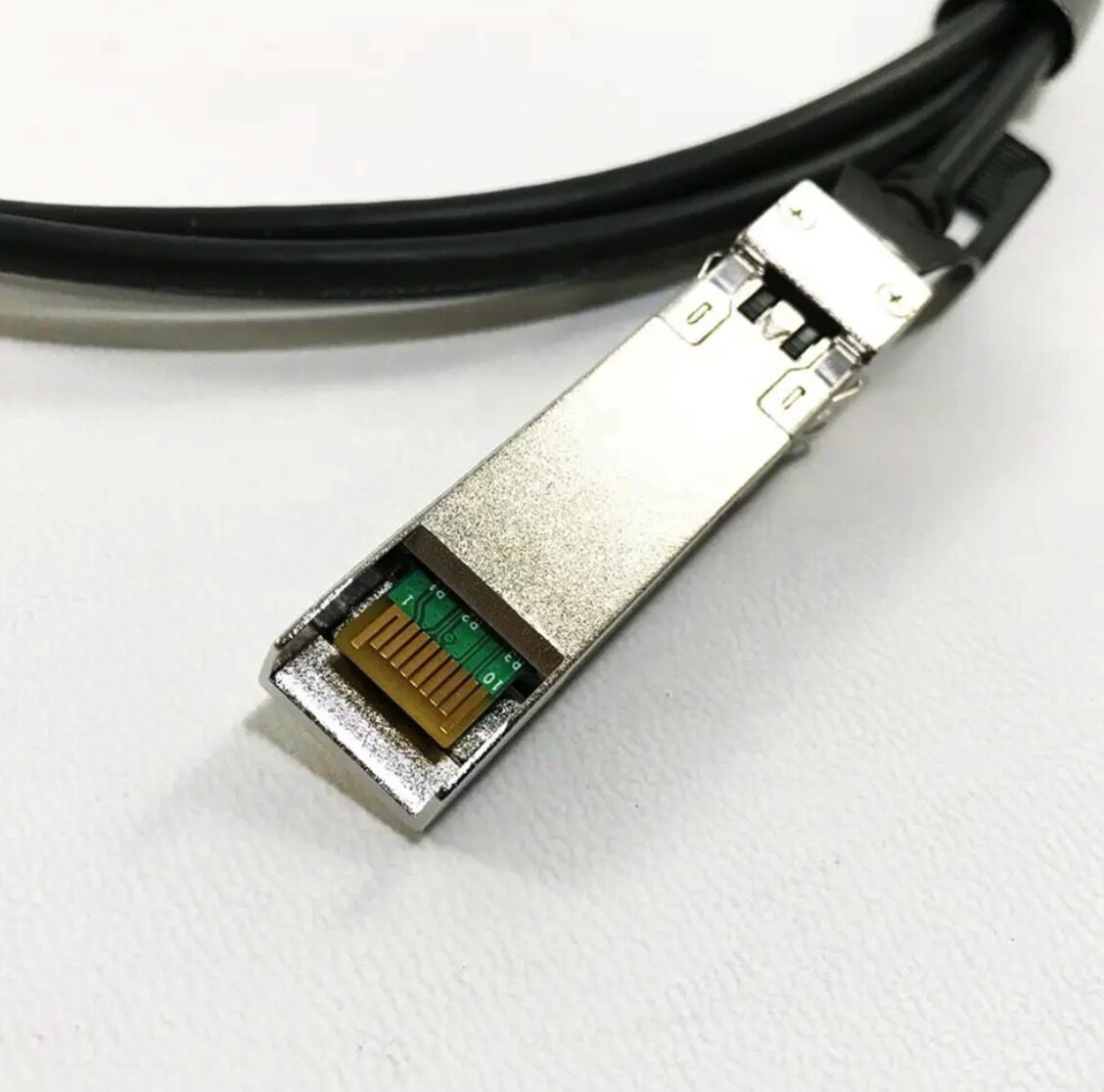

3. Connector Type: SFP+ to SFP+
4. Max Data Rate: 10Gbps
5. Protocols: 1* InfiniBand QDR,DDR, SDR,10G Gigabit Ethernet, Fibre Chann
6. Color: All colors

Features:
1. Up to 1.25Gb/s Data Links
2. Hot-Pluggable
3. Single LC connector
4. Up to 80km on 9/125μm SMF
5. Single +3.3V Power Supply
6. Monitoring Interface Compliant with SFF-8472
7. Low power dissipation <1W typically
8. Operating temperature range: 0°C to 70°C
9. RoHS compliant and Lead Free

Application:
1. High-speed inF-tonerconnects within and between switches, rouF-toners and transport equipment
2. Server-server clusF-toners, super-computing inF-tonerconnections
3. Proprietary backplanes
4. InF-tonerconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
