HGP5810 XG(S)-PON Combo OLT
OLT-2
OLT-3
OLT-4

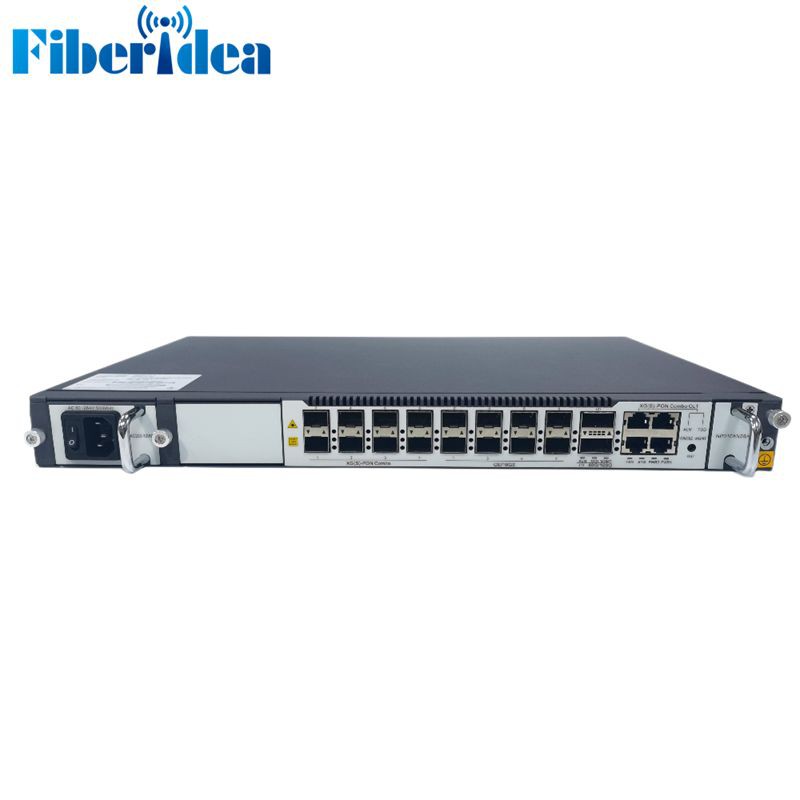

HGP5810 XG(S)-PON Combo OLT

HGP5810 is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONUs, which can save a lot of costs for operators.

Send Inquiry

Product Introduction

■8*GEPON SFP，4*10GE/GE SFP，4*10/100/100 BaseT，AC/DC dual power supply optional
■HGP5810 is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONUs, which can save a lot of costs for operators.

Model	HGP5810
Product configuration	8XG(S)-PON/GPON port, 810GE/GE SFP + 2*100G QSFP28, Dual power with optional
Exchange capacity	720Gbps
Packet forwarding rate	535.68Mpps
Memory and storage	memory：2GB，storage：8GB
Management port	Console
Port	8XG(S)-PON/GPON port, 810GE/GE SFP + 2*100G QSFP28
PON	Comply with ITU-T G.987/G.988 standard
	40KM Physical differential distance，100KM transmission logical distance
	1:256 Max splitting ratio
	Standard OMCI management function
	Open to any brand of ONT
	ONU batch software upgrade
VLAN	Support 4K VLAN
	Support Vlan based on port, MAC and protocol
	Support dual Tag VLAN, port-based static QinQ and fiexible QinQ
MAC	128K Mac address
	Support static MAC address setting
	Support black hole MAC address filtering
	Support port MAC address limit
ring network protocol	Support STP/RSTP/MSTP
	Support ERPS Ethernet ring network protection protocol
	Support Loopback-detection port loopback detection
port control	Support two-way bandwidth control
	Support port storm suppression
	Support 9K Jumbo ultra-long frame forwarding
Port aggregation	Support static link aggregation
	Support dynamic LACP
	Each aggregation group supports a maximum of 8 ports
ACL	Support standard and extended ACL
	Support ACL policy based on time period
	Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
	Support IEEE 802.1X authentication
Layer 3	Support ARP learning and aging
	Support static route
	Support dynamic route RIP/OSPF/BGP/ISIS
	Support VRRP
Environment temperature	Working Temperature：-10℃～55℃
Environment temperature	Storge temperature：-40℃～70℃
environment humidity	Operating humidity: 10%～95% (non-condensing)
environment humidity	Storage humidity: 10%～95% (non-condensing)
environment friendly	China RoHs,、EEE
weight	6.5KG
fan	Modular fans supply（3个）
power	AC： 100～240V　47/63Hz；
power	DC： 36V～75V；
Power consumption	90W
Dimensions (Width * height * depth)	44027044mm
Dimensions (Width * height * depth)	44027044mm
