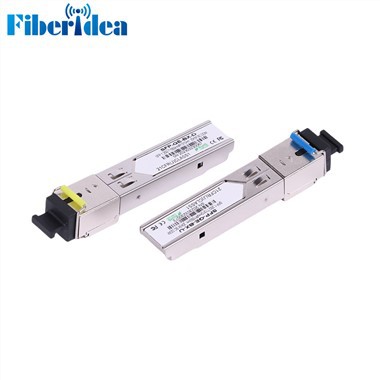

■The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 80km transmission distance with SMF.
■The SFP optical module is mainly composed of lasers. SFP classification can be divided into rate classification, wavelength classification, mode classification
|
Compatible OEM Part Number |
/ |
FIBERTOP Part Number |
80KM SFP |
|
Form Factor |
SFP |
Data Rate |
1.25Gb/s |
|
Wavelength |
1550nm |
Fiber Type |
SMF |
|
Max Distance |
80KM |
Optical Components |
DFB+PIN |
|
Transmitter Power |
-5~ 0dBm |
Extinction ratio |
> 9.0dB |
|
Receiver Sensitivity |
< -23 Bm |
Receiver Overload |
>-1dBm |
|
Connector |
Double LC |
Digital Diagnostic Monitoring |
Yes |
|
Environment |
Operating:0°C to 70°C Storage: -40°C to 85°C |
Weight |
0.03 kg |
